SS1-AR After-Run Off-Delay Timer Module 12/24VDC
Series SS1-AR After-Run Off-Delay Timer Module

Alternative Views:


Typical Applications:

  • After-Run Off-Delay Timer Relay
  • Engine Cooling Fan Control Relay
  • Micro PLC
  • Engine Water Pump Control Module
  • Engine Turbo Protection Cool-Down Timer
  • Delayed Power Off Relay
  • Battery Drain Protection Module

Note: Part Number and Pricing Change Based on Options Selected.

Relay Socket and/or Wire Harness Sold Separately.


Base Price $49.50


Product Code: SS1-AR

Module Configuration

Output Signal*:

Parameter Defines Output Signal (Battery [+] or Ground [-] or PWM Signal)

Input 2 Function*:

Parameter Determines Optional Input 2 Functionality

Off-Delay Timing*:


Contact Design*:

Parameter Specifies Contact Base Design (9-Pin or 5-Pin Configuration)

Description Technical Specs Options / Accessories

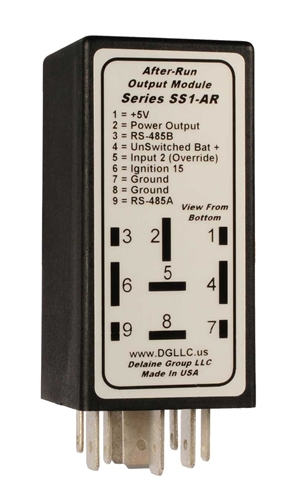

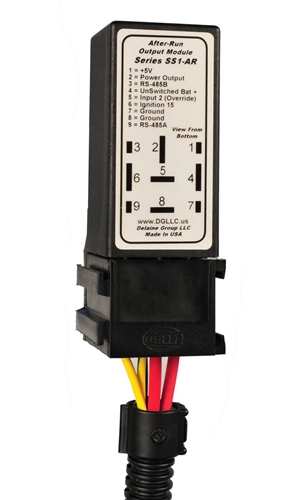

  • After-Run Off-Delay Module Developed for the Mobile Engine and Equipment Market
  • Can Withstand High Vibration, Fluctuating Voltages and Extreme Temperature Conditions
  • Solid State Output Can Be Configured as Either a 10A High-Side or 1A Low-Side Output Signal
  • Compact Weather Resistant Design Utilizes a Standard Automotive Style Relay Socket
  • Two Digital/Analog Inputs Can Be Configured to Each Customer's Requirement
  • RoHS Compliant
  • Customizable Using Online Configuration Tool or with Custom Software
Configurable Parameters
  • Debounce Timing
  • Timing Duration
  • Input Signals: Digital: High-Side or Low-Side, Analog: 0-36 Volts, Analog: 0-5 Volts, Analog: 4-20 mA, Analog: Frequency Hz
  • Input Function: Normally Open or Normally Closed
  • Digital Output Function: Normally Open or Normally Closed
  • Digital Output: High-Side 10A or Low-Side 1A
In addition to providing our standard hardware platform with custom software, DFX will also design and manufacture custom variations of our electronics. Our engineers are experienced with embedded systems and design our circuits utilizing multi-layer printed circuit boards in combination with the surface mount and through-hole technology.

Accessories

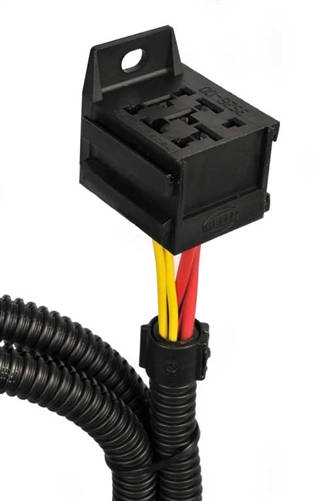

DIN Rail Relay Connector Bracket with 32A Terminal Block 9-Pos Relay Connector & Terminal Kit MODBUS with Locking Tab Wire Harness 9-Position Relay Connector with Flying Leads 48"
(SS1 High Power Design)
9-Pos Relay Connector with Integrated Mounting Bracket
Price $17.75
Price $6.75
Price $21.00
Price $1.82
9-Pos Relay Connector with Mounting Bracket 9-Pos Relay Connector & Terminal Kit Modbus 9-Position Relay Connector Wire Harness 48" 9-Pos Relay Connector with Mounting Bracket
Wire Harness 9-Position Relay Connector with Flying Leads 48"
(SS1 Low Power Design)
9-Pos Relay Connector & Terminal Kit with Locking Tab
Price $21.00
Price $6.10
9-Position Relay Connector Wire Harness 48" 9-Pos Relay Connector & Terminal Kit .250" with Locking Lance
