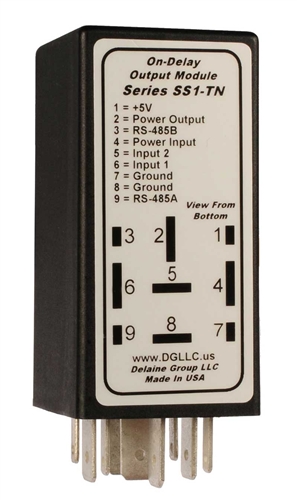

SS1-TN On-Delay Timer Output Module 12/24VDC
SS1-TN On-Delay Timer Relay

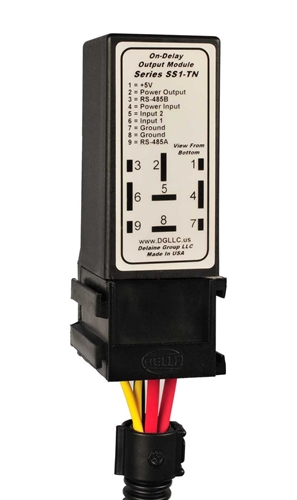

Alternative Views:


Typical Applications:

  • On-Delay Timer Relay
  • Delay On Make Timer Relay
  • On-Delay Micro PLC
  • Time Delayed Load Switch
  • Irrigation Engine Shutdown Timer
  • Delayed Start Output Module
  • Time Switch
  • Field Programmable On-Delay Timer
  • Custom On-Delay Module
  • High-Speed On-Delay Timer (40 to 90 Milliseconds)

Note: Part Number and Pricing Change Based on Options Selected.

Relay Socket and/or Wire Harness Sold Separately.

Base Price $49.50

Product Code: SS1-TN

Module Configuration

Output Signal*:

Parameter Defines Output Signal (Battery [+] or Ground [-] or PWM Signal)

Input 1 Function*:

Parameter Defines Input Signal Type and Input Activation State (NO or NC)

Debounce Timing*:

Amount of Time the Input 1 Must be Active before Timing Activates

Input 2 Function*:

Parameter Determines Optional Input 2 Functionality

On-Delay Timing*:

Parameter Specifies On-Delay Time Duration

Contact Design*:

Parameter Specifies Contact Base Design (9-Pin or 5-Pin Configuration)

Description Technical Specs Options / Accessories

  • On-Delay Timer Module Developed for the Mobile Engine and Equipment Market
  • Can Withstand High Vibration, Fluctuating Voltages and Extreme Temperature Conditions
  • Solid State Output Can Be Configured as Either a 10A High-Side or 1A Low-Side Output Signal
  • Compact Weather Resistant Design Utilizes a Standard Automotive Style Relay Socket
  • Two Digital/Analog Inputs Can be Configured to Each Customer's Requirement
  • RoHS Compliant
  • Completely Customizable Using Online Configuration Tool or with Custom Software
Configurable Parameters
  • Debounce Timing
  • Timing Duration
  • Input Signals: Digital: High-Side or Low-Side, Analog: 0-36 Volts, Analog: 0-5 Volts, Analog: 4-20 mA, Analog: Frequency Hz
  • Input Function: Normally Open or Normally Closed
  • Digital Output Function: Normally Open or Normally Closed
  • Digital Output: High-Side 10A or Low-Side 1A
In addition to providing our standard hardware platform with custom software, DFX will also design and manufacture custom variations of our electronics. Our engineers are experienced with embedded systems and design our circuits utilizing multi-layer printed circuit boards in combination with the surface mount and through-hole technology.

Accessories
DIN Rail Relay Connector Bracket with 32A Terminal Block 9-Pos Relay Connector with Integrated Mounting Bracket 9-Pos Relay Connector & Terminal Kit MODBUS with Locking Tab 9-Pos Relay Connector & Terminal Kit with Locking Tab
Price $17.75
Price $1.82
Price $6.75
Price $6.10
9-Pos Relay Connector with Mounting Bracket 9-Pos Relay Connector with Mounting Bracket 9-Pos Relay Connector & Terminal Kit Modbus 9-Pos Relay Connector & Terminal Kit .250" with Locking Lance

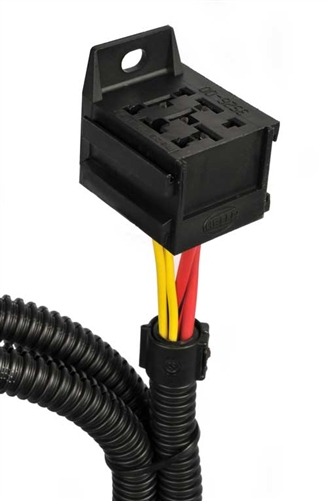

Wire Harness 9-Position Relay Connector with Flying Leads 48"
(SS1 Low Power Design)
Wire Harness 9-Position Relay Connector with Flying Leads 48"
(SS1 High Power Design)
Price $21.00
Price $21.00
9-Position Relay Connector Wire Harness 48" 9-Position Relay Connector Wire Harness 48"
