SS1-LV Under Voltage Output Module with Override 12/24VDC

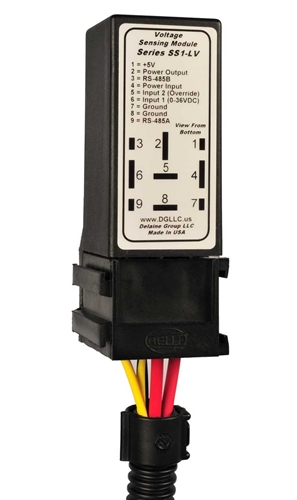

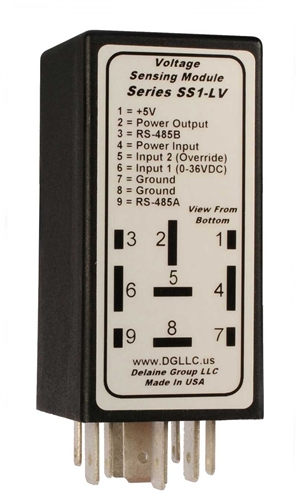

SS1-LV Under Voltage Sensing Module DC

Alternative Views:


Typical Applications:

  • Engine Battery Monitor
  • Under Voltage Battery Disconnect
  • Under Voltage Alarm Output Module
  • Voltage Activated Engine Exercise Timer
  • 0-36V Battery Under Voltage Output Module
  • 0-5V Under Voltage Output Module
  • Voltage to RS-485 Convertor

Note: Part Number and Prices Change Based on Options Selected.
Relay Socket and/or Wire Harness Sold Separately.


Base Price $49.50


Product Code: SS1-LV

Module Configuration

Output Function*:

Parameter Determines Output Function When Voltage Reaches Switch Points

Output Signal*:

Parameter Defines Output Signal (Battery [+] or Ground [-] Signal)

Switch 1 in Volts*:

Parameter Selects Under Voltage Switch Point V-1 When Output Activates

Output On-Delay*:

Parameter Can Add a Time Delay / Debounce to Output Activation

Switch 2 in Volts*:

Parameter Selects the Minimum Operating Voltage

Output Off-Delay*:

Selects Amount of Time When Output Deactivates

Contact Design*:

Parameter Specifies Contact Base Design (9-Pin or 5-Pin Configuration)

Description Technical Specs Options / Accessories

  • DC Voltage Sensing Module Designed for the Mobile Engine and Equipment Market
  • Analog Input Monitors DC Voltage Signals (0-36V, 0-5V)
  • Output Signal Is Controlled "On" and "Off" by a Set of Predetermined Voltage Values
  • Includes Optional Manual Output Override Input
  • RoHS Compliant
  • Customizable Using Online Configuration Tool
Configurable Parameters
  • Debounce Timing
  • Timing Duration
  • Input Signals: Digital: High-Side or Low-Side, Analog: 0-36 Volts, Analog: 0-5 Volts, Analog: 4-20 mA, Analog: Frequency Hz
  • Input Function: Normally Open or Normally Closed
  • Digital Output Function: Normally Open or Normally Closed
  • Digital Output: High-Side 10A or Low-Side 1A
In addition to providing our standard hardware platform with custom software, DFX will also design and manufacture custom variations of our electronics. Our engineers are experienced with embedded systems and design our circuits utilizing multi-layer printed circuit boards in combination with the surface mount and through-hole technology.

Accessories

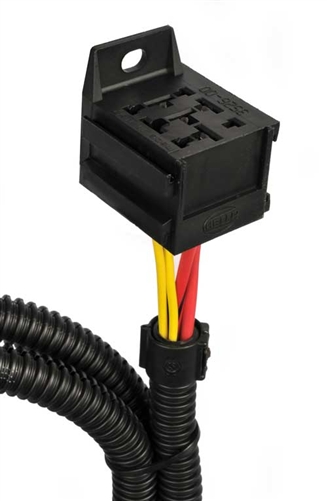

Wire Harness 9-Position Relay Connector with Flying Leads 48"
(SS1 High Power Design)
9-Pos Relay Connector with Integrated Mounting Bracket Wire Harness 9-Position Relay Connector with Flying Leads 48"
(SS1 Low Power Design)
DIN Rail Relay Connector Bracket with 32A Terminal Block
Price $21.00
Price $1.82
Price $21.00
Price $17.75
9-Position Relay Connector Wire Harness 48" 9-Pos Relay Connector with Mounting Bracket 9-Position Relay Connector Wire Harness 48" 9-Pos Relay Connector with Mounting Bracket
9-Pos Relay Connector & Terminal Kit with Locking Tab 9-Pos Relay Connector & Terminal Kit MODBUS with Locking Tab
Price $6.10
Price $6.75
9-Pos Relay Connector & Terminal Kit .250" with Locking Lance 9-Pos Relay Connector & Terminal Kit Modbus
