Over Voltage Protection Device for Alternators 28VDC
Overvoltage Proection Module

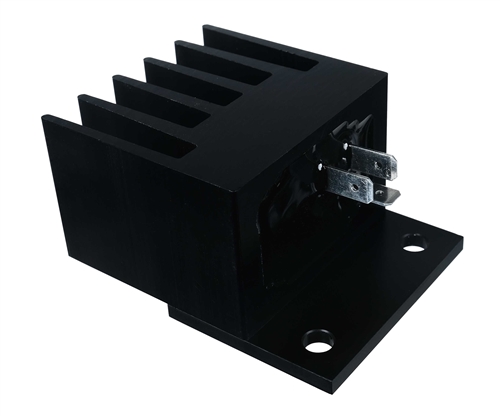

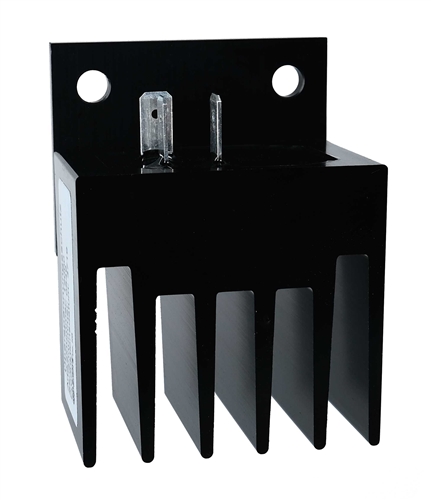

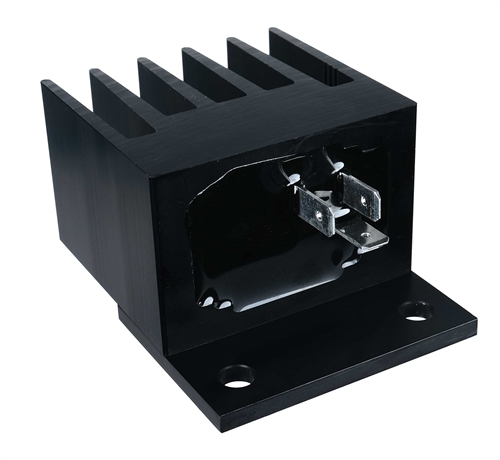

Alternative Views:


Description: OV protection device with heat-sink is designed for 28V alternators to protect against faults on the equipment's electrical system which could occur when there is a regulator failure, loose battery connection, failed or disconnected battery or even when switching off equipment consumers can cause load dumps that can damage sensitive electronics. OV protection device automatically disconnects battery connection from alternator within 1.25ms when an over voltage of 38.2 volts is detected. Originally designed for on-highway applications that transports hazardous materials this OV protection device is also ideal for Off-highway construction and marine markets.

Reset: Manual Reset
Operating Temperature: -40 C to +85C
IP Rating: IP 67
Voltage: 24V DC Systems
Reaction Time: 1.0ms - 1.25ms
Trigger Voltage 38.8V - 39.2 V
Mounting Bracket: 2x .255" (6.5mm) Mounting Holes
Connections: 3x Male 6.3mm Fast-on Terminals (Ground, Battery In, Battery Out)
Heat Sink Material: Aluminum
Weight: 7.4 oz

Over Voltage Protection Device OEM Cross Reference Numbers:

  • BOSCH 0192900007
  • DAF 294600
  • KASSBOHRER 7423029000
  • MTU 0005320420
  • MAN 81259020311
  • MERCEDES 0025457132
  • MERCEDES A0025457132
  • MERCEDES-BENZ 0025457132
  • MERCEDES-BENZ A0025457132

Price $275.00


Product Code: 101-1001-0001

Description Technical Specs Options / Accessories

OV Protection Device Compatible with the Following OEM Part Numbers :
  • BOSCH 0192900007
  • DAF 294600
  • KASSBOHRER 7423029000
  • MTU 0005320420
  • MAN 81259020311
  • MERCEDES 0025457132
  • MERCEDES A0025457132
  • MERCEDES-BENZ 0025457132
  • MERCEDES-BENZ A0025457132
CURRENTLY IN STOCK
